| Place of Origin: | Hebei |
|---|---|
| ชื่อแบรนด์: | Yuntong |
| ได้รับการรับรอง: | CE , SGS |
| Model Number: | YT-B-O |
| Minimum Order Quantity: | 10 Sqm |
| Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 300Sqm/Week |
| Name: | Diamond Stainless Steel Black Oxide Wire Rope Mesh For Bird Proof Net | Wire Rope: | 1.2 mm to 4.0 mm |
|---|---|---|---|
| Rope Constructions: | 7 x 7 , 7 x 19 | Mesh Type: | Ferruled and Knotted |
| Finished: | Black Oxide | Mesh Angle: | 60°IN RHOMBUS |
| Material: | Stainless Steel Wire Rope | Sheet Size: | Custom-made |
| เน้น: | stainless steel bird proof net,black oxide wire rope mesh,diamond wire rope bird net |
||
| Attribute | Value |
|---|---|
| Name | Diamond Stainless Steel Black Oxide Wire Rope Mesh For Bird Proof Net |
| Wire Rope | 1.2 mm to 4.0 mm |
| Rope Constructions | 7 x 7, 7 x 19 |
| Mesh Type | Ferruled and Knotted |
| Finished | Black Oxide |
| Mesh Angle | 60° IN RHOMBUS |
| Material | Stainless Steel Wire Rope |
| Sheet Size | Custom-made |

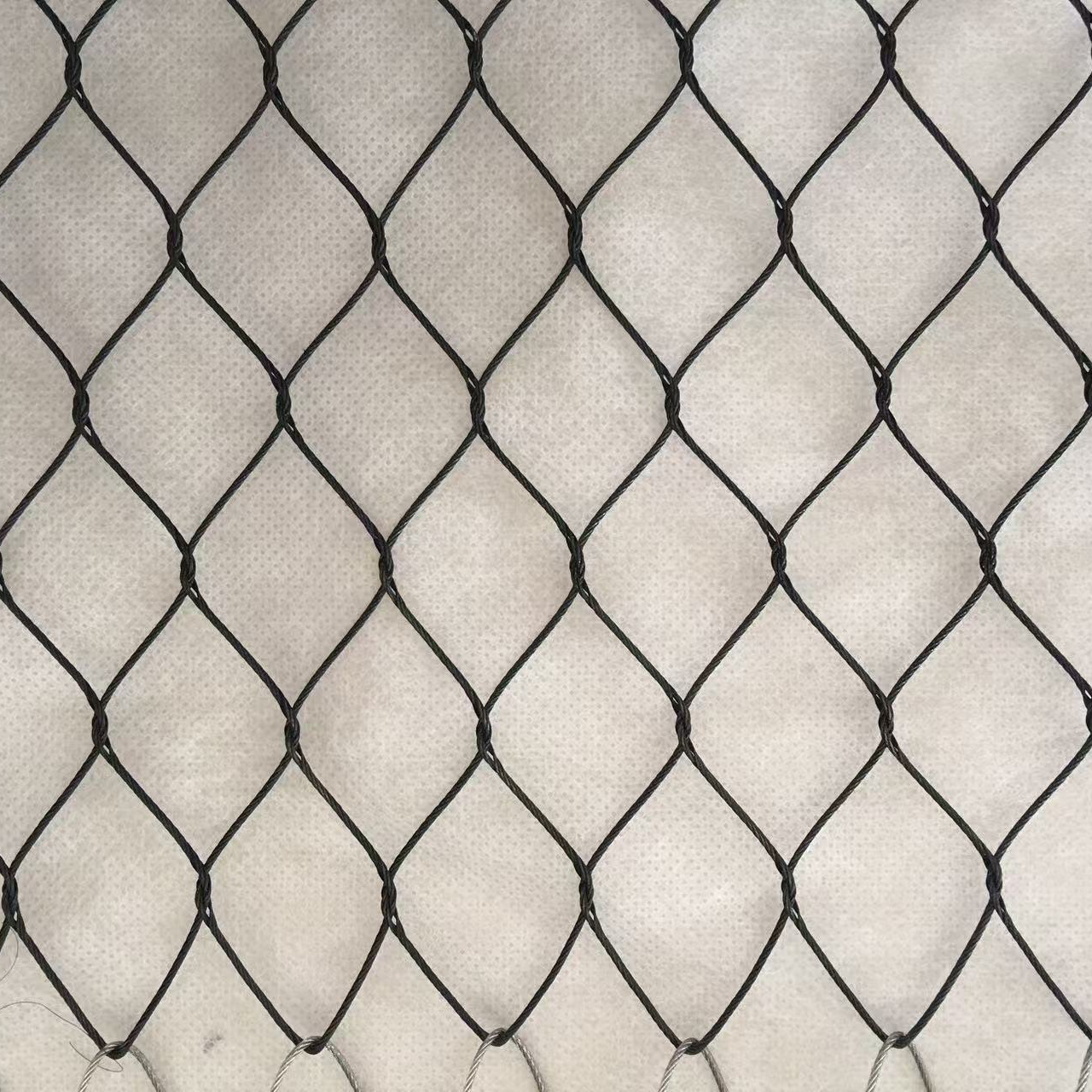

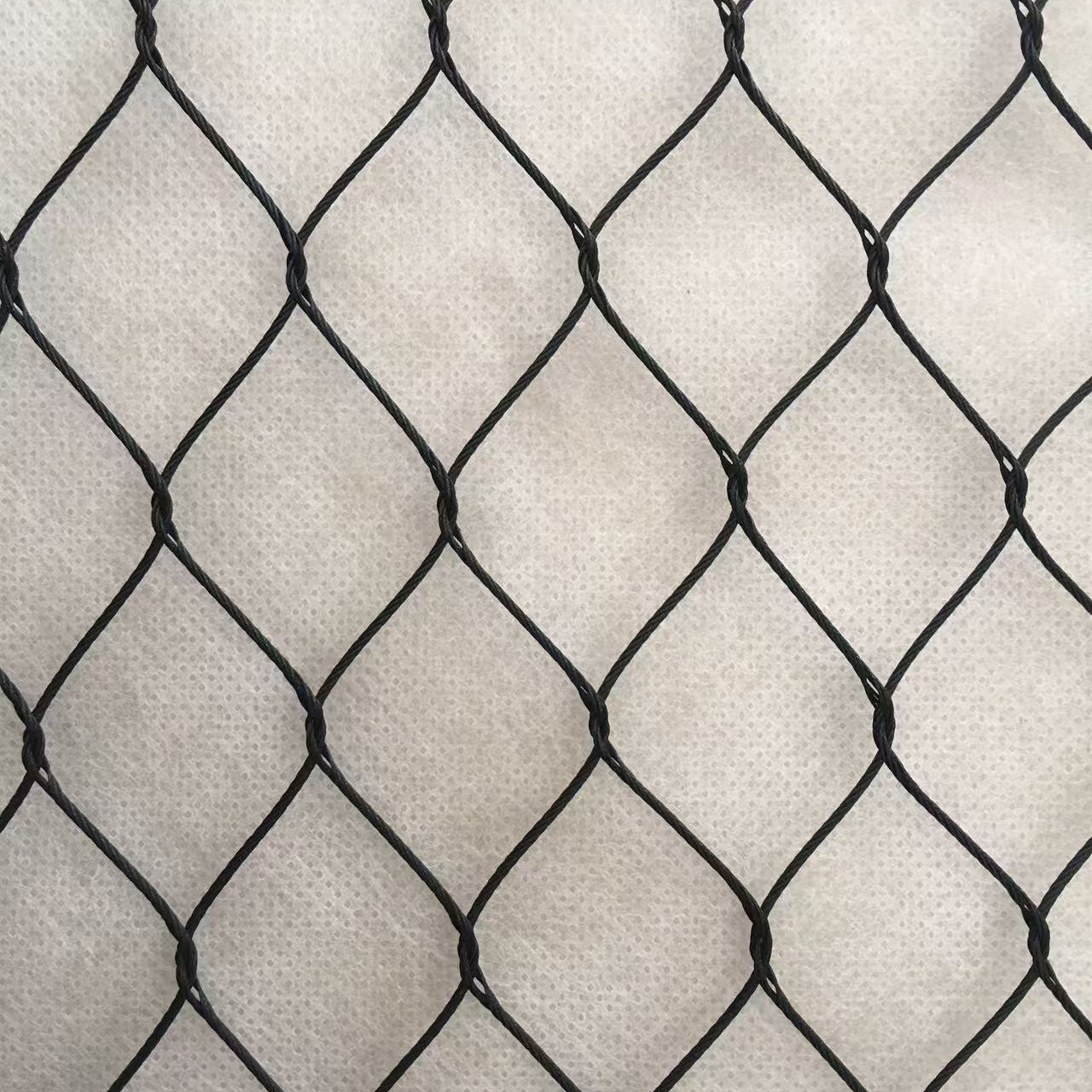

Diamond Stainless Steel Black Oxide Wire Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316/AISI316L.
This stainless steel wire rope mesh is custom manufactured to suit your balustrade, railing or architectural application.
The mesh achieves a finished diamond style when stretched at a 60 degree angle and can be applied in either vertical or horizontal orientation depending on design requirements.
Available mesh sizes range from 20mm to 120mm or larger, with stainless cable diameters from 1.2mm to 4.0mm.
| Hole Size | 1.2MM(3/64) | 1.6MM(1/16) | 2.0MM(5/64) | 2.4MM(3/32) | 3.2MM(1/8) |
|---|---|---|---|---|---|
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
| Feature | Specification |
|---|---|
| Mesh Type | Ferruled or Knotted |
| Mesh Angle | 60 degree in rhombus shape |
| Mesh Orientation | Horizontal or Vertical |
| Panel Measurement | Custom-made in width and length |
| Finished | Black Oxide |
| Application | Balustrade, Facade Cladding, Animal Enclosure, Aviary Netting |
