304 Stainless Steel Lamp Anti-Fall Net High-Strength Protection

ข้อมูลพื้นฐาน
สถานที่กำเนิด: เหอเป่ย
ชื่อแบรนด์: Yuntong
ได้รับการรับรอง: CE , SGS
หมายเลขรุ่น: YT-3075
จำนวนสั่งซื้อขั้นต่ำ: 10 sqm
ราคา: USD 2-50
รายละเอียดการบรรจุ: แพ็คเกจฟิล์มสำหรับแต่ละชิ้นหลายชิ้นบรรจุในกล่อง 1 กล่อง
เวลาการส่งมอบ: 5-8 วันทำงาน
เงื่อนไขการชำระเงิน: T/T, Western Union, Paypal
สามารถในการผลิต: 300sqm/สัปดาห์
ชื่อผลิตภัณฑ์: ตาข่ายกันตกโคมไฟ คำสำคัญ: เครือข่ายความปลอดภัย
วัสดุ: AISI316 เกรดสูง เชือกลวด: 1.2 มม. ถึง 4.0 มม.
การก่อสร้างเชือก: 7 x 7, 7 x 19 ประเภทตาข่าย: เฟอร์โรเล่
ที่เสร็จเรียบร้อย: อ่างอัลตราโซนิก การวางแนวตาข่าย: แนวนอนแนวตั้ง
ความกว้าง: ทำเอง ความยาว: ทำเอง
เน้น:

304 stainless steel lamp net

,

high-strength anti-fall protection

,

X tend cable mesh lamp

304 Stainless Steel Lamp Anti-Fall Net High-Strength Protection

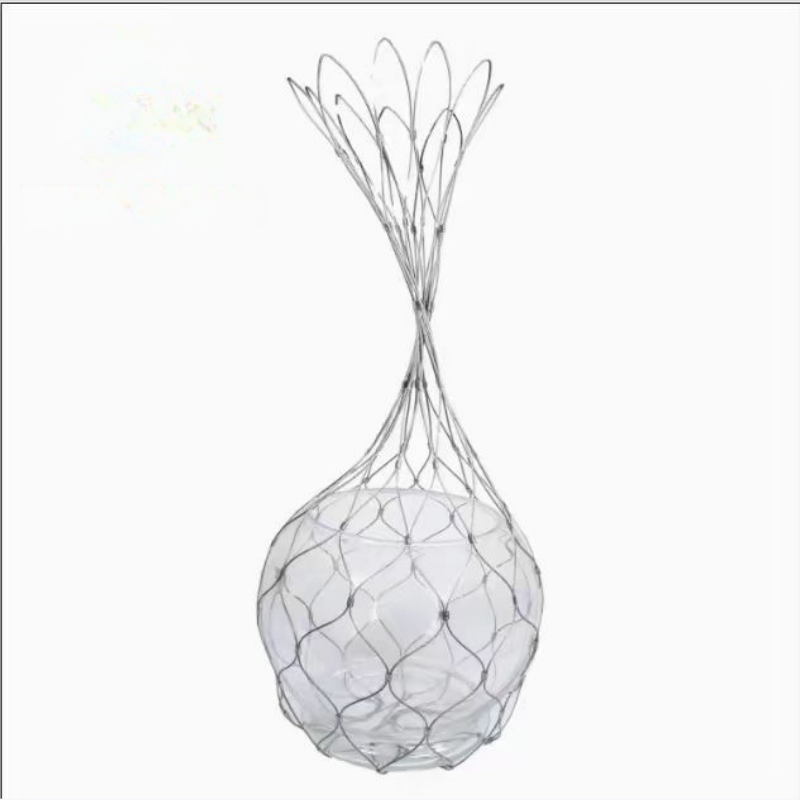

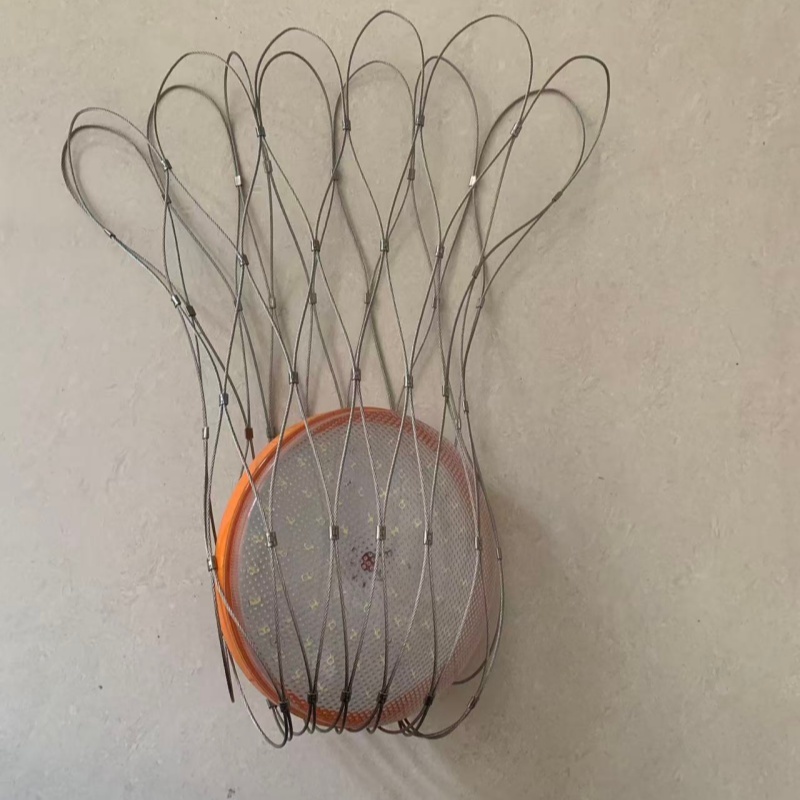

In terms of design and adaptability, lamp anti-fall net demonstrate strong flexibility and can be customized according to different lamp types and installation scenarios. For crystal chandeliers with complex shapes, anti-fall nets adopt a flexible rope net structure that can be flexibly arranged to fit the lamp's contour.



The mesh size can be adjusted according to the size of the crystal particles, which not only does not block the light refraction effect but also fully supports the main body of the lamp. For flat lamps such as ceiling lamps and downlights, a thin mesh cover design is launched, which is installed in the gap between the lamp and the ceiling and is completely invisible from below, perfectly hidden in the decorative details.



In addition, lamp anti-fall nets also offer a variety of fixing methods, such as screw buckle fixing and magnetic installation, which are suitable for different ceiling materials such as gypsum board, concrete, and wood. They do not require damage to the original decoration structure and are easy and firm to install.



X-TEND Stainless steel mesh is light, robust, and transparent.High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of X-TEND – the mesh can even stand up to heavy loads.



Lamp Anti-Fall Net Specifications Sheet :

Hole Size

(Opening)

1.2MM(3/64)

(7 x 7 )

1.6MM(1/16)

(7 x 7 )

2.0MM(5/64)

(7 x 7 )

2.4MM(3/32)

(7 x 7 )

3.2MM(1/8)

(7 x 19 )

20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120





304 Stainless Steel Lamp Anti-Fall Net High-Strength Protection 0



304 Stainless Steel Lamp Anti-Fall Net High-Strength Protection 1
